How do I adjust the AV-400 system settings?
This article discusses adjusting the AV-400 system settings .

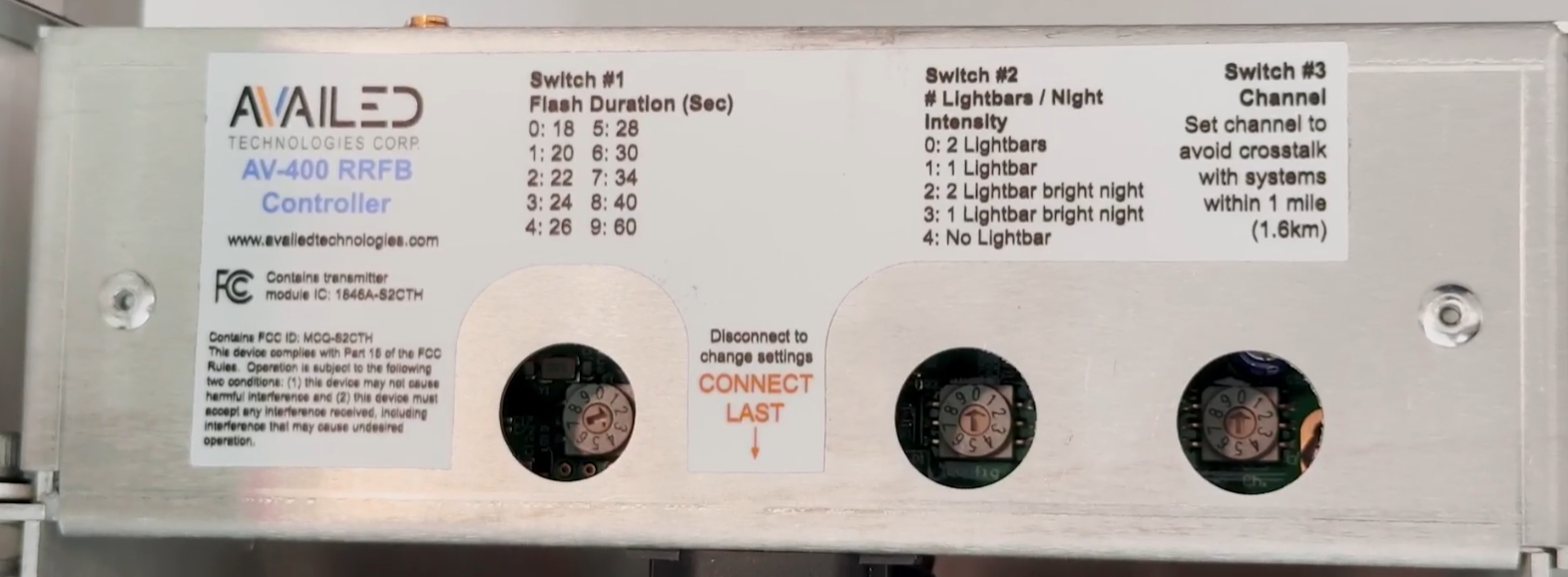

The AV-400 contains rotary dials to adjusts its settings. Please see the table below for adjusting the default settings.
| Flash Duration | Light Bar Setting | Radio Channel |
|---|---|---|
0: 18 sec (default) |
0: Dual lightbar (default) |
0: Channel 0 (default) |
1: 20 sec |
1: Single lightbar |
1: Channel 1 |
2: 22 sec |
2: Dual lightbar (bright night) |
2: Channel 2 |
3: 24 sec |
3: Single lightbar (bright night) |
3: Channel 3 |
4: 26 sec |
4: No lightbar |
4: Channel 4 |
5: 28 sec |
5: Channel 5 |
|
6: 30 sec |
6: Channel 6 |
|
7: 34 sec |
7: Channel 7 |
|
8: 40 sec |
8: Channel 8 |
|
9: 60 sec |
9: Channel 9 |
For setting changes to take effect the main connector needs to be disconnected and reconnected. The settings are read only when the system is powered up.
