What does the inside of my AV-400 solar engine look like?

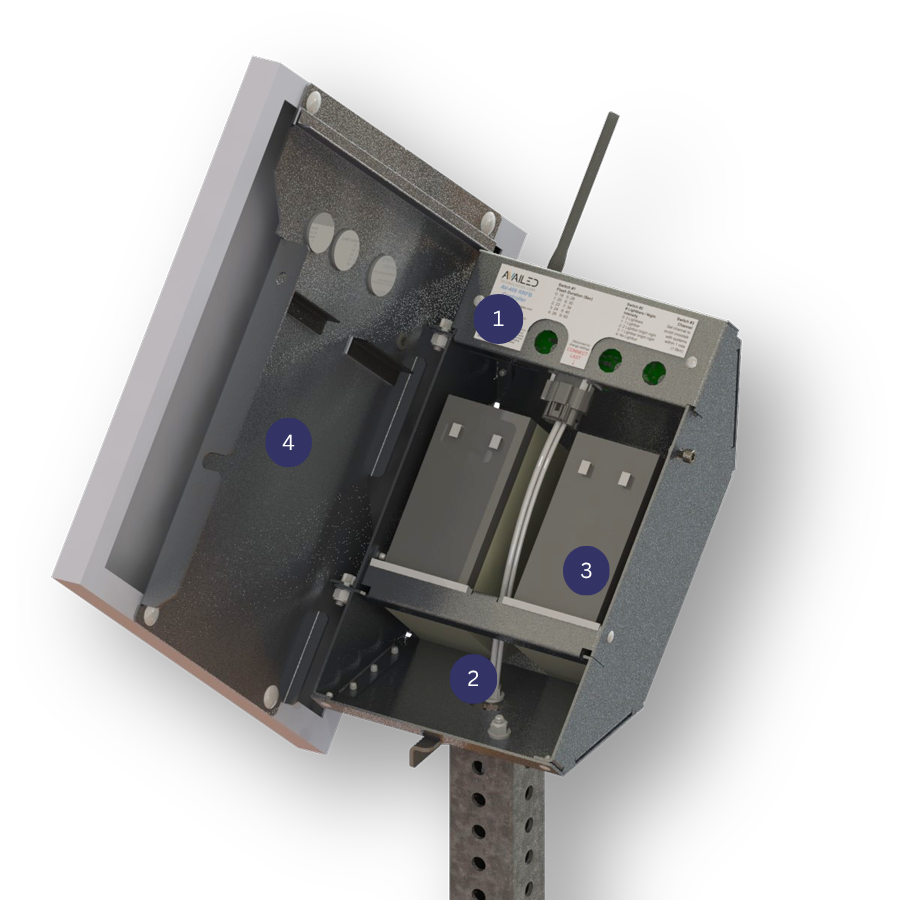

A labeled overview of the components inside the AV-400 solar engine enclosure.

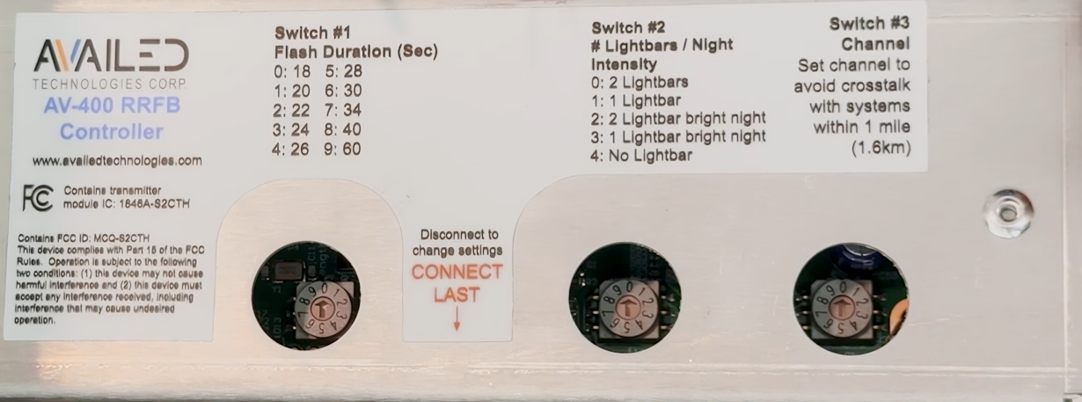

  1. Adjustable switches for flash duration, channel and night intensity.
  2. Simple two wire run; one wire to the lightbars and one wire to the push button.
  3. Easy install batteries with quick connectors.
  4. Hinged solar panel for easy front access to install batteries.
